Decorators¶

Decorators add behavioral features to motors by wrapping them. Multiple decorators can be stacked to combine features.

CurveDecor – Non-linear Response¶

Converts linear input into an S-shaped curve.

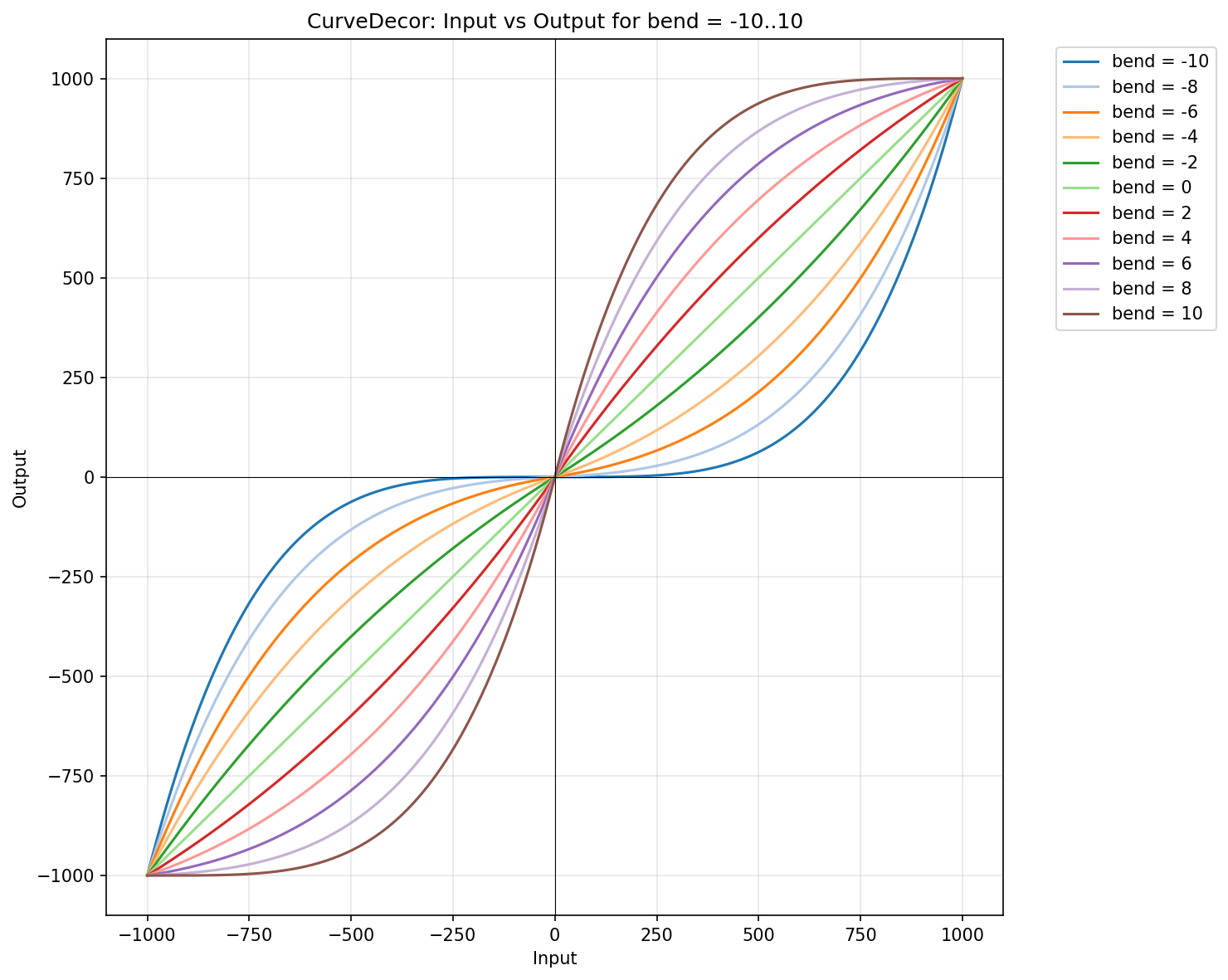

Curve Decor Visualization

Applying to Motors: Negative bend values create a softer response at low speeds (finer control) with steeper response at high speeds. Positive bend values create sharper initial response with compressed high-end.

template <class Motor, signed short kBend = 0>
class CurveDecor : public Motor

Parameters:

kBend: -10..10 (0 = linear, positive = precise low-speed control, negative = aggressive start)

Methods:

SetBend(value) – Set bend at runtime
Go(value) – Apply curved transformation

Example:

// Precise low-speed control with strong high-end response
using PreciseMotor = evam::CurveDecor<evam::DirectionalMotor<evam::TA6586Driver<9, 10>>, -6>;
PreciseMotor motor;
// Gentle reaction at low-speed
motor.Go(150);
motor.Go(200);
// Strong reaction at high speeds
motor.Go(750);
motor.Go(800);

Use cases:

Camera gimbals requiring smooth micro-adjustments
Precision positioning systems
Vehicles needing both crawling speed control and full power
CNC machines with fine feed control

InertiaDecor – Flywheel Effect¶

Simulates mechanical inertia where speed decreases gradually when stopping. Acceleration and direction changes are applied immediately, but deceleration follows an exponential decay curve.

template <class Motor, unsigned short kInertiaMass = 10>
class InertiaDecor : public virtual Tickable, public Motor

Requirements:

Acording EVA principle must call eva::tac() in loop() to drive the deceleration updates.

Parameters:

kInertiaMass: 1..200 (higher = slower deceleration)

Methods:

SetInertiaMass(value) – Set virtual mass (1..200)
Go(speed) – Apply speed with inertia simulation

Example:

using InertialMotor = evam::InertiaDecor<evam::DirectionalMotor<evam::TA6586Driver<9, 10>>, 20>;
InertialMotor motor;
motor.SetInertiaMass(25);
motor.Go(800);  // Accelerate
motor.Go(0);    // Gradual deceleration

Behavior:

Small mass (1-10): Quick stops, responsive
Medium mass (11-30): Realistic car-like behavior
Large mass (31-200): Heavy flywheel, slow deceleration

Use-case:

For extremely high transmission ratios (e.g., geared motors with high reduction), consider using higher inertia mass values to compensate for the mechanical advantage and gear train inertia.

KickDecor – Static Friction Overcome¶

Applies a momentary power pulse when starting from stop or changing direction to overcome static friction and inertia.

template <class Motor, unsigned short kKickDuration = 20, signed short kKickPower = 1000>
class KickDecor : public virtual Tickable, public Motor

Requirements:

Must call eva::tac() in loop() to manage kick pulse timing.

Parameters:

kKickDuration: Pulse duration in milliseconds (> 0)
kKickPower: Pulse power (-1000..1000)

Methods:

SetupKickstart(duration, power) – Configure kick parameters
SetKickDuration(value) – Set pulse duration
SetKickPower(value) – Set pulse power
Go(value) – Apply with kick-start when needed

Example:

using KickerMotor = evam::KickDecor<evam::DirectionalMotor<evam::TA6586Driver<9, 10>>, 30, 900>;
KickerMotor motor;
motor.SetupKickstart(25, 800);  // 25ms pulse at 80% power
motor.Go(300);  // Kick then maintain 30% power

Kick Logic:

From stop to forward: Applies positive kick pulse
From stop to reverse: Applies negative kick pulse
Direction change: Applies kick in new direction
Already moving: No kick, direct control

Combining Decorators¶

Decorators can be stacked in any order to achieve complex behaviors:

#include <evaTac.h>
#include <evamTA6586Driver.h>
#include <evamDirectionalMotor.h>
#include <evamCurveDecor.h>
#include <evamInertiaDecor.h>
#include <evamKickDecor.h>

using namespace eva;

// Stack all three decorators
using BaseMotor = evam::DirectionalMotor<evam::TA6586Driver<9, 10>>;
using PreciseMotor = evam::CurveDecor<BaseMotor, 5>;
using InertialMotor = evam::InertiaDecor<PreciseMotor, 15>;
using SmartMotor = evam::KickDecor<InertialMotor, 25, 900>;

SmartMotor motor;

void setup() {
    motor.SetupRange(-1000, -200, 200, 1000);
    motor.SetBend(6);
    motor.SetInertiaMass(20);
    motor.SetupKickstart(30, 850);
    motor.Go(800);  // All decorators applied
}

void loop() {
    eva::tac();
}

Order Effects:

Curve before Inertia: Precise low-speed shaping, then inertia applied to smooth signal
Inertia before Curve: Inertia on raw signal, then curve shapes the result
Kick at any level: Always applied at appropriate layer

Performance Considerations¶

InertiaDecor and KickDecor require eva::tac() calls for timing
All decorators add minimal overhead (inline templates)
Multiple decorators compile to single optimized function chain
No runtime polymorphism overhead
